Human Spaceflights

International Flight No. 308

Soyuz MS-05

Borei

Russia

Russia
Patch Soyuz MS-05 Vita logo

hi res version (490 KB)


Patch Soyuz MS-05

Launch, orbit and landing data

Launch date:  28.07.2017
Launch time:  15:41:12,285 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  403 - 407 km
Inclination:  51,64°
Docking ISS:  28.07.2017, 21:54:44 UTC
Undocking ISS:  14.12.2017, 05:14:28 UTC
Landing date:  14.12.2017
Landing time:  08:37:47.3 UTC
Landing site:  47°23'35.46'' N, 69°38'30.96 E

walkout photo

Crew Soyuz MS-05

hi res version (668 KB)

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Ryazansky  Sergei Nikolayevich  Commander 2 138d 16h 56m 35s  2158
2  Bresnik  Randolph James "Randy"  Flight Engineer 2 138d 16h 56m 35s  2158
3 Italy  Nespoli  Paolo Angelo  Flight Engineer 3 138d 16h 56m 35s  2158

Crew seating arrangement

Launch
1  Ryazansky
2  Bresnik
3  Nespoli
Soyuz MS spacecraft
Landing
1  Ryazansky
2  Bresnik
3  Nespoli

Backup Crew

No.   Surname Given names Position
1  Misurkin  Aleksandr Aleksandrovich  Commander
2  Vande Hei  Mark Thomas  Flight Engineer
3 Japan  Kanai  Norishige  Flight Engineer
Crew Soyuz MS-05 backup

hi res version (610 KB)

alternative crew photo

alternative crew photo

Hardware

Launch vehicle:  Soyuz-FG (No. 3M137S R15000-058)
Spacecraft:  Soyuz MS-05 (MS No. 736)

Flight

Launch from the Baikonur Cosmodrome. ISS Expedition 52 / 53. Landing 152 km southeast of Dzheskasgan.

Following a six-hours solo flight Soyuz MS-05 docked to ISS on July 28, 2017. Sergei Ryazansky, Randolph Bresnik and Paolo Nespoli became the ISS Expedition 52 (together with ISS Expedition 51 crew members Fyodor Yurchikhin, Jack Fischer and Peggy Whitson). With the arrival Expedition 52 became a six-person-crew.

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted 280 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

Graphics / Photos

Soyuz MS Soyuz MS

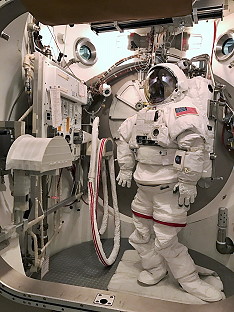

Soyuz MS crew in training

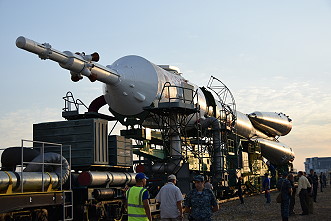

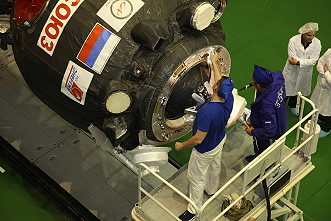

Soyuz MS-05 integration Soyuz MS-05 rollout

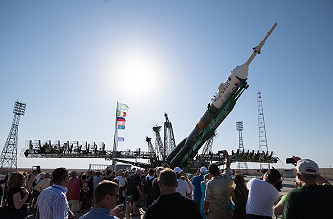

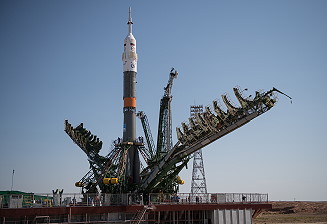

Soyuz MS-05 erection Soyuz MS-05 on the launch pad

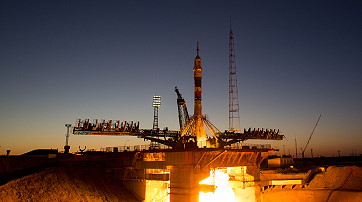

Soyuz MS-05 launch crew onboard ISS
Soyuz MS-05 landing Soyuz MS-05 recovery

©
