Human Spaceflights

International Flight No. 313

Soyuz MS-11

Antares

Russia

Russia
Patch Soyuz MS-11 Patch Soyuz MS-11

hi res version (627 KB)

Launch, orbit and landing data

Launch date:  03.12.2018
Launch time:  11:31:52.519 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  408 - 419 km
Inclination:  51.6°
Docking ISS:  03.12.2018, 17:33:20 UTC
Undocking ISS:  24.06.2019, 23:25:33 UTC
Landing date:  25.06.2019
Landing time:  02:47:42.4 UTC
Landing site:  47°24'56.70'' N, 69°35'6.70'' E

walkout photo

Crew Soyuz MS-11

hi res version (880 KB)

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Kononenko  Oleg Dmitriyevich  Commander 4 203d 15h 15m 50s  3264
2 Canada  Saint-Jacques  David  Flight Engineer 1 203d 15h 15m 50s  3264
3  McClain  Anne Charlotte "Annimal"  Flight Engineer 1 203d 15h 15m 50s  3264

Crew seating arrangement

Launch
1  Kononenko
2  Saint-Jacques
3  McClain
Soyuz MS spacecraft
Landing
1  Kononenko
2  Saint-Jacques
3  McClain

Backup Crew

No.   Surname Given names Position
1  Skvortsov  Aleksandr Aleksandrovich Jr.  Commander
2 Italy  Parmitano  Luca Salvo  Flight Engineer
3  Morgan  Andrew Richard  Flight Engineer
Crew Soyuz MS-11 backup

hi res version (705 KB)

alternative crew photo

alternative crew photo

Hardware

Launch vehicle:  Soyuz-FG (No. N15000-067)
Spacecraft:  Soyuz MS-11 (MS No. 741)

Flight

Launch from the Baikonur Cosmodrome. ISS Expedition 57 / 58 / 59. Landing 147 km southeast of Dzheskasgan.

Following an only six-hours solo flight Soyuz MS-11 docked to ISS on December 03, 2018. Oleg Kononenko, David Saint-Jacques and Anne McClain became the ISS Expedition 57 (together with ISS Expedition 56 crew members Sergei Prokopyev, Alexander Gerst and Serena Auñón-Chancellor). With the arrival Expedition 57 became a six-person-crew.

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted 282 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.

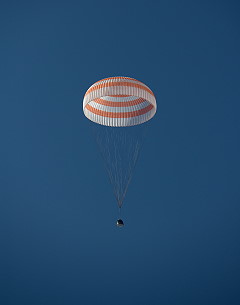

Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

Graphics / Photos

Soyuz MS Soyuz MS
Soyuz MS crew in training

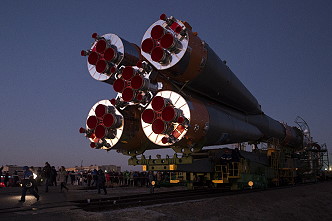

crew in training Soyuz MS-11 rollout

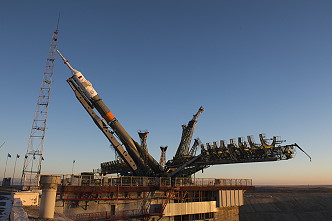

Soyuz MS-11 rollout Soyuz MS-11 erection

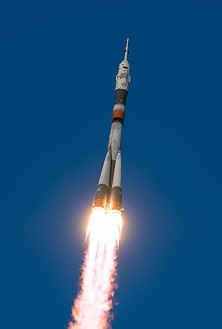

Soyuz MS-11 on the launch pad Soyuz MS-11 launch
Soyuz MS-11 launch Soyuz MS-11 landing
Soyuz MS-11 landing Soyuz MS-11 landing

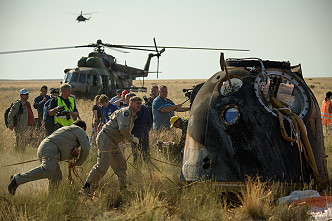

Soyuz MS-11 recovery Soyuz MS-11 recovery

©

Last update on March 29, 2020.
