Human Spaceflights

International Flight No. 316

Soyuz MS-15

Sarmat

Russia

Russia
Patch Soyuz MS-15 Patch Soyuz MS-15

hi res version (546 KB)

Launch, orbit and landing data

Launch date:  25.09.2019
Launch time:  13:57:42.701 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  416 - 422 km
Inclination:  51.64°
Docking ISS:  25.09.2019, 19:42:40 UTC
Undocking ISS:  17.04.2020, 01:53:30 UTC
Landing date:  17.04.2020
Landing time:  05:16:10.0 UTC
Landing site:  47°17'12.6" N, 69°32'31.2" E

walkout photo

Crew Soyuz MS-15

hi res version (709 KB)

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo



alternate crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Skripochka  Oleg Ivanovich  Commander 3 204d 15h 18m 27s  3280
2  Meir  Jessica Ulrika "Goose"  Flight Engineer 1 204d 15h 18m 27s  3280
3 UAE  Al Mansoori  Hazzaa Ali Abdan Khalfan  Spaceflight Participant 1 7d 21h 01m 38s  128

Crew seating arrangement

Launch
1  Skripochka
2  Meir
3  Al Mansoori
Soyuz MS spacecraft
Landing
1  Skripochka
2  Meir
3  Morgan

Backup Crew

No.   Surname Given names Position
1  Ryzhikov  Sergei Nikolaevich  Commander
2  Marshburn  Thomas Henry "Tom"  Flight Engineer
3 UAE  Al Neyadi  Sultan Saif Muftah Hamad  Spaceflight Participant
Crew Soyuz MS-15 backup
Patch Soyuz MS-15 backup crew

hi res version (765 KB)

alternate crew photo

alternate crew photo

alternate crew photo

Hardware

Launch vehicle:  Soyuz-FG (No. Ya15000-071)
Spacecraft:  Soyuz MS-15 (MS No. 744)

Flight

Launch from the Baikonur Cosmodrome. ISS Expedition 61 / 62. Landing 149 km southeast of Dzheskasgan.

Following an only six-hours solo flight Soyuz MS-15 docked to ISS on September 25, 2019. With the undocking of Soyuz MS-12 on October 03, 2019 Oleg Skripochka, and Jessica Meir became the ISS Expedition 61 (together with ISS Expedition 60 crew members Aleksandr Skvortsov, Luca Parmitano, Andrew Morgan and Christina Koch). Expedition 61 became a six-person-crew.

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted 261 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

Note

Hazzaa Al Mansoori landed on October 03, 2019 at 10:59:21.4 UTC with Soyuz MS-12 spacecraft.

Graphics / Photos

Soyuz MS Soyuz MS
Soyuz MS crew in training
crew in training Jessica Meir in EVA training

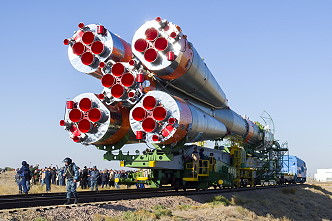

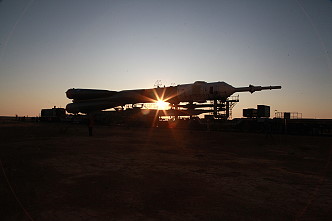

Soyuz MS-15 rollout Soyuz MS-15 rollout

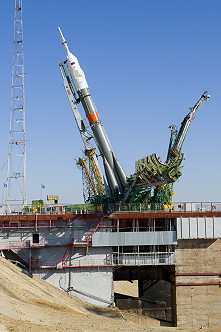

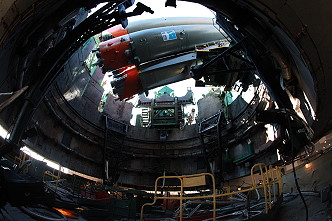

Soyuz MS-15 erection Soyuz MS-15 erection

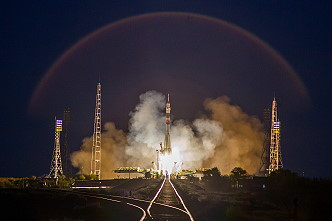

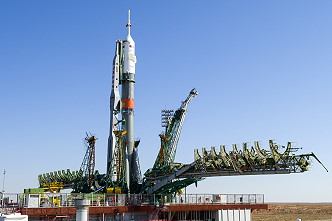

Soyuz MS-15 on the launch pad Soyuz MS-15 launch

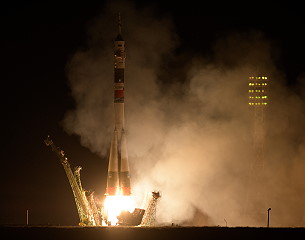

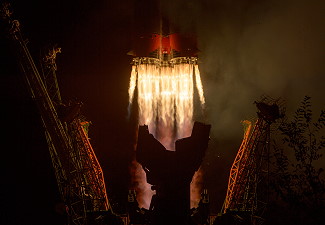

Soyuz MS-15 launch Soyuz MS-15 launch

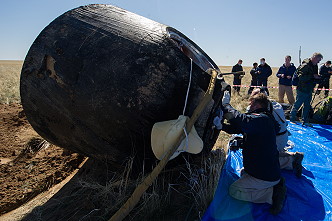

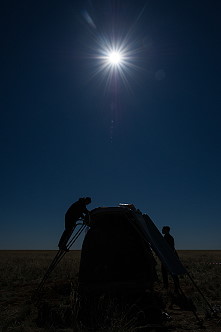

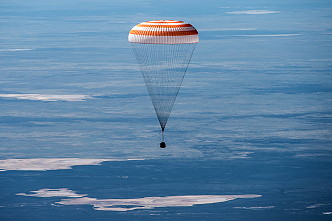

Soyuz MS-15 landing Soyuz MS-15 recovery

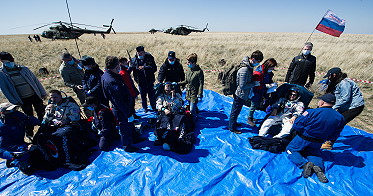

Soyuz MS-15 recovery Soyuz MS-15 recovery
Soyuz MS-15 recovery

©
