Human Spaceflights

International Flight No. 267

Soyuz TMA-16



Patch Soyuz TMA-16 Patch Guy Laliberté

hi res version (730 KB)

Patch Soyuz TMA-16

Launch, orbit and landing data

Launch date:  30.09.2009
Launch time:  07:14:44.923 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  345 - 354 km
Inclination:  51.64°
Docking ISS:  02.10.2009, 08:35:07 UTC
Undocking ISS:  18.03.2010, 08:03:03 UTC
Landing date:  18.03.2010
Landing time:  11:24:03.5 UTC
Landing site:  50°46'51.4" N, 67°27'53.3" E

walkout photo

Crew Soyuz TMA-16

hi res version (759 KB)

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo


No.   Surname Given names Position Flight No. Duration Orbits
1  Surayev  Maksim Viktorovich  Commander 1 169d 04h 09m 19s  2669
2  Williams  Jeffrey Nels  Flight Engineer 3 169d 04h 09m 19s  2669
3  Laliberté  Guy  Spaceflight Participant 1 10d 21h 16m 58s  171

Crew seating arrangement

1  Surayev
2  Williams
3  Laliberté
Soyuz TMA spacecraft
1  Surayev
2  Williams

Backup Crew

No.   Surname Given names Position
1  Skvortsov  Aleksandr Aleksandrovich Jr.  Commander
2  Walker  Shannon  Flight Engineer
3  Barrett  Barbara McConnell  Spaceflight Participant
Crew Soyuz TMA-16 backup

hi res version (846 KB)

alternative crew photo

Patch Soyuz TMA-16 (backup crew)

hi res version (503 KB)


Launch vehicle:  Saturn IB (SA-206)
Spacecraft:  Soyuz-FG (No. 14M134S B15000-029)


Launch from the Baikonur Cosmodrome and landing 71 km northeast of Arkalyk; ISS Expedition 21 / 22 (Maksim Surayev and Jeffrey Williams).

Guy Laliberté became another space tourist. Following a two-day solo flight Soyuz TMA-16 docked to ISS on October 02, 2009. Jeffrey Williams and Maksim Surayev became the ISS Expedition 21 (together with ISS Expedition 20 crew members Frank De Winne, Roman Romanenko, Robert Thirsk and Nicole Stott).

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted 261 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.


Guy Laliberté landed on October 11, 2009 at 04:31:43.1 UTC with Soyuz TMA-14 spacecraft.

Relocations of Manned Spacecrafts

Spacecraft from Undocking Time UTC to Redocking Time UTC
Soyuz TMA-16 ISS - Zvezda 21.01.2010 10:03:11 ISS - Poisk 21.01.2010 10:23:52

Graphics / Photos

Soyuz TMA spacecraft Soyuz TMA landing module

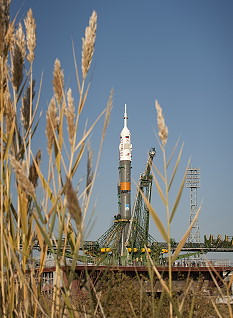

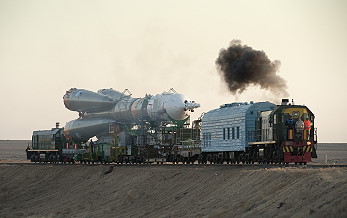

Soyuz TMA-16 rollout Soyuz TMA-16 on launch pad

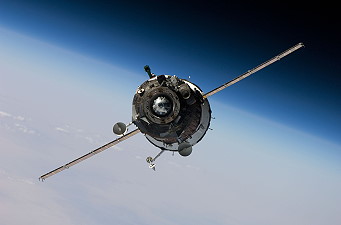

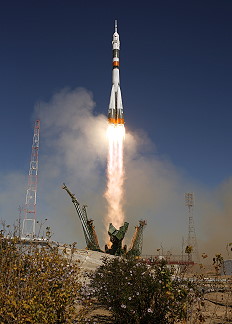

Soyuz TMA-16 launch Soyuz TMA-16 arrives at the ISS

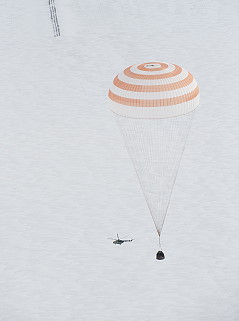

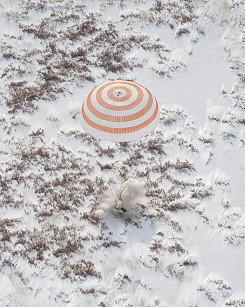

Soyuz TMA-16 landing Soyuz TMA-16 landing
Soyuz TMA-16 recovery
