Human Spaceflights

International Flight No. 279


Endeavour (25)

134th Space Shuttle mission


Patch STS-134 AMS patch

hi res version (552 KB)

hi res version (323 KB)

Patch Roberto Vittori STS-134 Patch STS-134 payload

hi res version (239 KB)

hi res version (541 KB)

Launch, orbit and landing data

Launch date:  16.05.2011
Launch time:  12:56:27.99 UTC
Launch site:  Cape Canaveral (KSC)
Launch pad:  39-A
Altitude:  321 - 343 km
Inclination:  51.6°
Docking ISS:  18.05.2011, 10:13:51 UTC
Undocking ISS:  30.05.2011, 03:55:12 UTC
Landing date:  01.06.2011
Landing time:  06:34:50 UTC
Landing site:  Cape Canaveral (KSC)
Landing speed:  354 km/h
Landing rollout:  2,004 m
Vehicle weight at liftoff:  2,052,443 kg
Orbiter weight at liftoff:  121,826 kg
Orbiter weight at landing:  92,240 kg

walkout photo

Crew STS-134

hi res version (764 KB)

alternative crew photo

alternative crew photo

alternative crew photo


No.   Surname Given names Position Flight No. Duration Orbits
1  Kelly  Mark Edward  CDR 4 15d 17h 38m 22s  249
2  Johnson  Gregory Harold "Box"  PLT 2 15d 17h 38m 22s  249
3  Fincke  Edward Michael "Mike"  MS-1, EV-2 3 15d 17h 38m 22s  249
6  Vittori  Roberto  MS-2, FE 3 15d 17h 38m 22s  249
5  Feustel  Andrew Jay "Drew"  MS-3, EV-1 2 15d 17h 38m 22s  249
4  Chamitoff  Gregory Errol  MS-4, EV-3 2 15d 17h 38m 22s  249

Crew seating arrangement

1  Kelly
2  Johnson
3  Fincke
4  Vittori
5  Feustel
6  Chamitoff
Space Shuttle cockpit
1  Kelly
2  Johnson
3  Fincke
4  Vittori
5  Feustel
6  Chamitoff

Backup Crew

No.   Surname Given names Position
1  Sturckow  Frederick Wilford "Rick"  CDR
Frederick Sturckow

hi res version (626 KB)


Orbiter :  OV-105 (25.)
SSME (1 / 2 / 3):  2059-2 (5.) / 2061-2 (2.) / 2057-2 (6.)
SRB:  BI-145 /RSRM 113
ET:  ET-122 (SLWT-42)
OMS Pod:  Left Pod 03 (36.) / Right Pod 04 (32.)
FWD RCS Pod:  FRC 5 (25.)
RMS:  201 (23.)
EMU:  EMU No. 3004 (PLSS No. 1004) / EMU No. 3018 (PLSS No. 1018)


Launch from Cape Canaveral (KSC) and landing at Cape Canaveral (KSC), Runway 15.

Work to replace a powerful magnet in a physics experiment named AMS bound for the International Space Station has forced NASA to move a summer flight (target launch date was July 29, 2010) by the shuttle Endeavour to mid-November.

NASA announced on January 13, 2011 that astronaut Frederick Sturckow will serve as a backup commander for the STS-134 space shuttle mission to facilitate continued training for the crew and support teams during STS-134 Commander Mark Kelly's absence. Mark Kelly's wife, Congresswoman Gabrielle Giffords, was critically wounded in a shooting on January 08, 2011 in Tucson, Arizona.

On April 04, 2011 the new target launch date was set for April 29, 2011. The delay removes a scheduling conflict with a Russian Progress supply vehicle scheduled to launch April 27, 2011 and arrive at the station April 29, 2011.

STS-134 (ISS-ULF-6 ELC-3 / AMS) delivered the Alpha Magnetic Spectrometer-2 (AMS), a particle physics detector designed to operate from the station and search for various types of unusual matter.
Also onboard for delivery were station spare parts on the ExPRESS Logistics Carrier 3 (ELC-3), including two S-band communications antennas, a high-pressure gas tank, an ammonia tank assembly, circuit breaker boxes, a Canadarm2 computer and a spare arm for the Dextre robot. The ELC-3 also houses a suite of Department of Defense (DoD) experiments that will test systems and materials concepts for long duration spaceflight in low Earth orbit.
STS-134 included four spacewalks that focus on station maintenance, experiment swap out and transferring Endeavour's orbiter boom sensor system (OBSS) to the station. The crew left the boom as a permanent fixture to aid future station spacewalk work, if needed.

The Alpha Magnetic Spectrometer-2 (AMS) is a state-of-the-art particle physics detector to be delivered to the International Space Station. Using a large magnet to create a magnetic field that will bend the path of the charged cosmic particles already traveling through space, eight different instruments will provide information on those particles as they make their way through the magnet. Armed with that information, hundreds of scientists from 16 countries are hoping to determine what the universe is made of and how it began, as the AMS searches for clues on the origin of dark matter and the existence of antimatter and strangelets. And if that's not enough, there is also the information it could provide on pulsars, blazers and gamma ray bursters and any number of phenomena that have yet to be named.
The AMS is not the only experiment looking into these concepts - there are several large, high-energy experiments here on Earth, and a number of telescopes and explorer missions studying the universe from space. But, AMS is unique. Where telescopes - which measure light, whether visible or not - look at space, the AMS will sift through it, measuring cosmic particles. And unlike similar experiments on the ground, its study will not be limited to the particles that make it through Earth's atmosphere or can be artificially created.
In space, the AMS will naturally cross paths with particles of energies much higher than those obtainable in accelerators built on the ground. And they will come in much greater quantities, as well. The Earth's atmosphere protects us from the vast majority of the cosmic particles moving through the universe. Sitting on the ground at Kennedy Space Center, the AMS measured an average of 400 particles per second. In space, it is expected to see 25,000 particles per second.
What can these particles tell us? That is yet to be seen. The expectation is that they will answer fundamental physics questions. For instance, the Hubble Space Telescope has shown that the visible matter of the universe accounts for only a fraction of the mass needed to explain the current rate of the universe's expansion - about one sixth. One possible explanation for that is that there is a vast amount of matter we cannot see - or dark matter - which increases the total mass of the universe and accounts for the faster expansion.
If dark matter exists, the AMS will be able to detect it. For instance, one candidate for the particles that are dark matter is the hypothetical, elementary neutralino particle. If neutralinos exist, their collision could create excesses of electrons and anti-electrons - positrons - that could then be detected by the AMS.
The AMS could also detect antimatter and help answer another key question. Antimatter is made up of particles identical to those of regular matter, but with opposite electric and magnetic properties. The Big Bang theory assumes that there were equal amounts of matter and antimatter present when the universe began, in the complex form of helium anti-nuclei or heavier elements has never been found in nature. If it still exists, the AMS should be able to detect it - in the 10 years or more that the AMS will be in operation at the International Space Station, its detectors will see at least one (and possibly many) antihelium nucleus, if such a thing exists. If the detectors never see one, the AMS team will be able to affirm that they do not exist in the visible universe.
In studying these and other questions, the AMS brings together two scientific fields that have not historically interacted: astronomers who have seen the effects of these phenomena through their telescopes for centuries and high-energy physicists who have spent decades trying to explain them from the ground. The AMS team hopes to find answers where the two worlds meet.
The AMS is composed of a magnet and eight detectors that provide the scientists on the ground with information about the particles that travel through the magnet. All of the information is collected in the nanoseconds it takes a particle to travel through the AMS, and then sent down to scientist on the ground for analysis.
At the center - and the heart - of the AMS is the Permanent Magnet. Without it, cosmic particles would fly directly through the detectors in a straight line, offering no clues as to their charge.
The Permanent Magnet, which also flew on space shuttle Discovery in the early version of the AMS experiment, is a 1.105 meter by 0.8 meter cylinder made up of more than 6,000 2-by-2-by-1-inch (5-by-5-by-2.5 centimeters) blocks of Neodymium-Iron-Boron glued together with epoxy. Neodymium-Iron-Boron magnets are the strongest permanent magnets, providing the AMS with a magnetic field 3,000 times stronger than that of the Earth. However, it does not draw the cosmic particles to the International Space Station. In fact, the magnetic draw will not be felt at all, outside of the AMS - otherwise it might change the space station's orientation or draw astronauts to it on spacewalks.

STS-134 carried ELC 3 to the station where it was placed on the Port 3 truss upper inboard Passive Attachment System (PAS). ELC 1 and 2 were placed on the station's truss structure during STS-129. ELC-4 was carried to the station on STS-133 and was installed on the Starboard 3 truss lower inboard PAS. ELC 1 is mounted on the Port 3 truss element Unpressurized Cargo Carrier Attachment System (UCCAS) while ELC 2 was placed on the Starboard 3 truss upper outboard PAS.
Remmele Engineering, based in Minneapolis, Minn., built the integral aluminum ELC decks for NASA. Engineers from Goddard Space Flight Center's Carriers Development Office developed the challenging, lightweight ELC design, which incorporates elements of both the ExPRESS Pallet and the Unpressurized Logistics Carrier. Orbital Science Corporation built the ELC.
Each ELC can accommodate 12 Flight Releasable Attachment Mechanism (FRAM)-based cargos which includes two payload attached sites with full avionics accommodation. The mass capacity for an ELC is 9,800 pounds (4,445 kg) with a volume of 98 feet (30 meters) cubed. The empty weight of ELC 3 is around 4,000 pounds (1,814 kg). The station provides power to the ELCs through two 3 Kilowatt (kW), 120 Volts direct current (V dc) feeds at the station to ELC interface. The ELC power distribution module converts the 120 V dc power to 120 V dc and 28 V dc. Both power voltages are provided to each payload attached site by separated buses. 120 V dc power is also provided to the other cargo attached site.
ELC 3 is the final of four ELCs total to be attached to the station before the scheduled retirement of the space shuttle. Two ELCs attached to the Starboard truss 3 (S3) and two ELCs mated to the Port truss 3 (P3). By attaching at the S3/P3 sites, a variety of views such as zenith (deep space) or nadir (Earthward) direction with a combination of ram (forward) or wake (aft) pointing allows for many possible viewing opportunities. Cargo stationed on the ELC is exposed to the microgravity and vacuum environments of space for extended periods of time while docked to the station, unshielded from incident radiation and orbital debris.
ELC 3 contains one site designated to accommodate payloads launched on other missions. NASA uses a system on the external carriers to attach to ORUs and payloads consisting of the Flight Releasable Attachment Mechanism (FRAM). This mechanism has an active side with moving mechanical components, and a passive side that the active side engages with mechanically driven pins and latches. The active FRAM is driven by an EVA astronaut using a Pistol Grip Tool, or the station's robotic arm. These FRAM mechanisms are mounted to the ELC on PFRAM Adapter Plate Assemblies (PFAPs) and also provide an electrical connection that can be used if needed by the ORU or payload being attached. This empty PFRAM will be used for a future payload.
ELC 3 will carry seven ORUs and one empty PFAP. The weight of the ELC 3 is approximately 14,023 pounds (6,361 kg) with the ORUs installed. The following is a description of those items:
The primary function of the Ammonia Tank Assembly (ATA) is to store the ammonia used by the External Thermal Control System (ETCS). The major components in the ATA include two ammonia storage tanks, isolation valves, heaters, and various temperature, pressure and quantity sensors. There is one ATA per loop located on the zenith side of the Starboard 1 (Loop A) and Port 1 (Loop B) truss segments. Each is used to fill their respective ETCS loop on startup (loops are launched with nitrogen in the lines) and to supply makeup fluid to that loop. It also assists the Pump Module (PM) accumulator with ammonia inventory management, and provides the capability to vent the PM and ATA by connection to an external nonpropulsive vent panel. The length is 57 inches (145 centimeters) by 80 inches (203 centimeters) width with a height of 45 inches (114 centimeters). A new ATA, with 600 pounds (272 kg) of Ammonia, weighs approximately 1,702 pounds (772 kg).
ELC 3 will carry a Cargo Transportation Container (CTC) 2 that will contain 10 Remote Power Controller Modules (a large circuit breaker box) and 11 RPCM ORU Adapter Kits (OAKs) - basically brackets installed in the CTC to hold the ORUs. The empty RPCM OAK is used for a "fast swap" as the RPCM has a limited thermal clock, this allows the arm to remove the bad RPCM first, open the lid, place that in the blank spot, grab the replacement and install it in the shortest amount of time. In addition, the CTC will contain an Arm Computer Unit (ACU) ORU. The ACU is the heart of the computer subsystem of Canadarm2 - the station's Canadian-built robotic arm. The ACU is programmed to receive and process commands from the station crew or from ground control for moving Canadarm2. The ACU is being launched on STS-134 to add to the inventory of Canadian pre-positioned spares in orbit.
High-pressure oxygen onboard the space station provides support for EVAs and contingency metabolic support for the crew. This high-pressure O² is brought to the station by the High-Pressure Gas Tanks (HPGTs) and is replenished by the space shuttle by using the Oxygen Recharge Compressor Assembly (ORCA). There are several drivers that must be considered in managing the available high-pressure oxygen on the station. The amount of oxygen the space shuttle can fly up is driven by manifest mass limitations, launch slips; and in-orbit shuttle power requirements. The amount of oxygen that is used from the station's HPGTs is driven by the number of shuttle docked and undocked EVAs, the type of EVA prebreathe protocol that is used, contingency use of oxygen for metabolic support, and emergency oxygen. The HPGT will be transferred from ELC 3 to the Quest airlock. The HPGT measures 5 feet (13 centimeters) by 6.2 feet (16 centimeters) by 4.5 feet (11 centimeters) and weighs approximately 1,240 pounds (563 kg) of which 220 pounds (100 kg) is gaseous oxygen at 2,450 pounds (1,111 kg) per square inch of pressure. The HPGT was provided by Boeing.
The S-band Antenna Support Assembly (SASA) is an assembly that consists of the Assembly Contingency Radio Frequency Group (RFG, or ACRFG), SASA Boom and Avionics Wire Harness. The SASA supports the RFG in each of the two redundant strings of S-Band hardware on the Port 1 (P1) and Starboard 1 (S1) trusses. The major functions of the RFG are to receive a modulated radio signal from the S-band Transponder, amplify it to a power level necessary to be acquired by the Tracking Data and Relay Satellite (TDRS), and broadcast that signal through the selected antenna. Also, the RFG receives a signal from the TDRS through the antenna, amplifies it, and sends it to the Transponder for demodulation. The RFG consists of three units: the Assembly / Contingency (S-Band) Transmitter/Receiver Assembly (ACTRA), a High Gain Antenna (HGA), and a Low Gain Antenna (LGA). The SASA boom assembly consists of a mast, an EVA handle, a harness, a connector panel, a mounting surface for the RFG, and a baseplate fitting. The baseplate fitting is the structural interface for mounting the SASA to the truss on the station. The Avionics Wire Harness is installed on the SASA Boom Assembly. Through the harness, operational and heater power are provided to the RFG; command and status signals and RF transmit and receive signals are sent to and from RFG. The total envelope of the RFG is 36" × 59" × 33" (91 x 150 x 84 centimeters) (maximum dimensions). The SASA boom is 61" × 30 ¼" × 43". (155 x 77 x 109 centimeters). The entire SASA weighs 256 pounds (113 kg). The unit that is being flown on this mission was provided by MacDonald Dettwiler and Associates Ltd. (MDA).

STS-134 delivered a spare arm for Dextre to the station. The spare is 11.5 feet (3.51 meters) long with seven joints and a load-carrying capability of 1,320 pounds (600 kg). The seven joints provide the arm with the flexibility to grasp difficult-to-reach ORUs. It is equipped with an Orbital Tool Changeout Mechanism (OTCM) at the end of the arm to hold different types of tools. It also has a camera and light that provide imagery of robotic targets. ORUs removed by Dextre are temporarily stored on a platform (Enhanced ORU Temporary Platform) attached to robot's body.

On flight day 2, the crew of Endeavour completed several tasks in preparation for the docking on flight day 3. The first and most important of these tasks was surveying the shuttle's Thermal Protection System (TPS). The Orbiter Boom Sensor System (OBSS) was used to survey the wing leading edge and nose cone. The Shuttle Remote Manipulator System (SRMS, or Canadarm1) was also used to look at the thermal tiles and blankets on and around the Orbital Maneuvering System (OMS) pods. After the survey was complete, the Express Logistics Carrier (ELC) 3 was grappled by the SRMS. While the survey was conducted by pilot Gregory Johnson and mission specialists Roberto Vittori and Gregory Chamitoff, the rest of the crew prepared the orbiter for docking. This included installing tools such as a center-line camera in the Orbiter Docking System, along with various other sensors used to gauge distance and speed. Commander Mark Kelly and mission specialists Fincke and Andrew Feustel furthermore checked out the two spacesuits carried on Endeavour, in preparation for the mission's four planned spacewalks.

Endeavour's launch for the STS-134 mission was timed to lead to a link up with the International Space Station about 220 miles above the Earth. A series of engine firings during the first two days of the mission brought the shuttle to a point about 50,000 feet (15,240 meters) behind the station. Once there, Endeavour started its final approach. About 2.5 hours before docking, the shuttle's jets were fired during what is called the terminal initiation burn. The shuttle covered the final miles to the station during the next orbit.
As Endeavour moved closer to the station, its rendezvous radar system and trajectory control sensor provided the crew with range and closing-rate data. Several small correction burns placed the shuttle about 1,000 feet (304.8 meters) below the station.
Commander Mark Kelly, with help from pilot Gregory H. Johnson and other crew members, manually flew the shuttle for the remainder of the approach and docking.
Mark Kelly stopped Endeavour about 600 feet (182.9 meters) below the station. Timing the next steps to occur with proper lighting, he maneuvered the shuttle through an approximate eight-minute back flip called the Rendezvous Pitch Maneuver, also known as the R-bar Pitch Maneuver (RPM) since Endeavour was in line with an imaginary vertical R-bar directly below the station. During this maneuver, station crew members Paolo Nespoli and Catherine Coleman photographed Endeavour's upper and lower surfaces through windows of the Zvezda Service Module. They used digital cameras equipped with an 800 mm lens to provide up to one-inch (2.5 centimeters) resolution and a 400 mm lens providing three-inch (7.6 centimeters) resolution.
The photography was one of several techniques used to inspect the shuttle's thermal protection system for possible damage. Areas of special interest included the thermal protection tiles, the reinforced carbon-carbon panels along the wing leading edges and the nosecap, landing gear doors and the elevon cove. The photos were downlinked through the station's Ku-band communications system for analysis by imagery experts in Mission Control.
When Endeavour completed its back flip, it was back where it started with its payload bay facing the station. Mark Kelly then flew the shuttle through a quarter circle to a position about 400 feet (121.9 meters) directly in front of the station. From that point, he began the final approach to docking to the Pressurized Mating Adapter 2 at the forward end of the Harmony node.
The shuttle crew members operated laptop computers that process the navigational data, the laser range systems and Endeavour's docking mechanism.
Using a video camera mounted in the center of the orbiter docking system, Mark Kelly lined up the docking ports of the two spacecraft. He pause the shuttle 30 feet (9.14 meters) from the station to ensure the proper alignment of the docking mechanisms. He maintained the shuttle's speed relative to the station at about one-tenth of a foot per second (3 centimeters per second), while both Endeavour and the station were moving at about 17,500 mph (28,163 km/h). Mark Kelly kept the docking mechanisms aligned to a tolerance of three inches (7.6 centimeters).
When Endeavour made contact with the station on May 18, 2011, preliminary latches automatically linked the two spacecraft. The shuttle's steering jets were deactivated to reduce the forces acting at the docking interface. Shock absorber springs in the docking mechanism dampened any relative motion between the shuttle and station.
Once motion between the shuttle and the station had stopped, the docking ring was retracted to close a final set of latches between the two vehicles.
The Sensor Test for Orion Rel-nav Risk Mitigation, or STORRM, system was flying aboard Endeavour to examine sensor technologies that could make it easier for future space vehicles to dock to the International Space Station. It gathered data during the initial rendezvous and docking to the station, during the nominal undocking, and again during a dedicated re-rendezvous.

After the hatches are opened between the two spacecraft, STS-134 crew began working with the ISS Expedition 27. Once the hatches were open, the joint crew held a welcome ceremony and completed a safety briefing.
The same day Express Logistics Carrier-3 (ELC-3), was handed off from shuttle Endeavour’s robotic arm to the International Space Station arm and attached to the left side of the station’s truss structure. ELC-3 holds spare hardware for future station use, including an ammonia tank, a high-pressure gas tank, a cargo transport container, two S-band antenna assemblies and a spare arm for Dextre, the Special Purpose Dexterous Manipulator.

On May 19, 2011 the Alpha Magnetic Spectrometer-2 (AMS) was installed successfully on the outside of the International Space Station's right side. Mission Specialists Andrew Feustel and Roberto Vittori used the space shuttle’s robotic arm to extract it from Endeavour's payload bay. They handed it off to the space station’s Canadarm2, and Pilot Gregory Johnson and Mission Specialist Gregory Chamitoff then used the robotic arm to install AMS on the starboard side of the station’s truss.
While this was going on, Expedition 27 crew members Paolo Nespoli, Catherine Coleman and Ronald Garan assisted the rest of the STS-134 crew in completing transfers to and from Endeavour. Late in the crew day, the two crews performed an EVA procedures review. After the review, Gregory Chamitoff and Andrew Feustel camped out in the Quest Airlock overnight, in preparation for the mission's first spacewalk. The campout was done with the airlock's air pressure reduced, so as to purge nitrogen bubbles from the astronauts' blood and thus prevent decompression sickness.

The first EVA by Andrew Feustel and Gregory Chamitoff occurred on May 20, 2011 (6h 19m). They retrieved two experiments and install a new package of experiments on ELC-2, which is already on the station. Next, they installed jumpers between segments on the left-side truss, or backbone of the station, for ammonia refills; vent nitrogen from an ammonia servicer; and installed an external wireless communication antenna on the Destiny laboratory that will provide wireless communication to the Express Logistics Carriers mounted on the station's truss.
The first spacewalk of the STS-134 mission had the most variety. Andrew Feustel and Gregory Chamitoff started out by making their way to the ExPRESS Logistics Carrier 2 on the starboard side of the station's truss to retrieve two Materials International Space Station Experiments - MISSEs 7A and 7B. They were delivered to the station in November 2009 and installed during one of the STS-129 spacewalks.
To remove the experiments, Gregory Chamitoff disconnected one power cable from each of them. He then closed the experiment and removed two pins holding MISSE 7B in place and carried it back to Endeavour's cargo bay for returned home. Andrew Feustel did the same with 7A.
The two experiments returning home were stored opposite from each other on the side of the shuttle's cargo bay and secured using two latches. When they were in place, Andrew Feustel retrieved MISSE 8, brought up by Endeavour, and carried it back to the ExPRESS Logistics Carrier 2 for installation in 7A's place. He installed two pins to hold the experiment in place, opened the experiment and hooked up two power cables.
While he did so, Gregory Chamitoff installed a Crew Equipment and Translation Aid cart light on the S3 segment of the station's truss. He used one bolt to secure the light to the cart, and hooked up one power cable. Afterward, before he left the area, he installed a cover on one face of the S3 solar alpha rotary joint. It was removed during a November 2007 spacewalk, and held in place with six bolts.
Andrew Feustel and Gregory Chamitoff's next task was to prepare for the work Andrew Feustel and Michael Fincke performed on the mission's second spacewalk to top off the ammonia in the station's P6 photovoltaic thermal control system cooling loop. The loop had a slow ammonia leak. They started by installing a jumper cable that connect the cooling loops of the P4 segment of the station's truss to the P3 segment, and then venting nitrogen from the loops between P1 and P5. They also vented nitrogen from the jumper that connects the ammonia reservoir they were used for the refill to P6.
When that was done, they moved on to the Destiny laboratory, where they were installing antennas for the External Wireless Communication (EWC) system. Andrew Feustel worked on routing the cables it connected to, while Gregory Chamitoff sets up the antenna. To do so, Gregory Chamitoff first removed two handrails on Destiny and replaced them with EWC handrails, which have the antennas integrated into them. Each handrail is held in place by two bolts.
Once the antenna handrails were installed, Gregory Chamitoff connected two power cables, and Andrew Feustel connected three more and stored two additional cables for future use.
Andrew Feustel wrapped up the first spacewalk of the mission by getting tools and equipment that were used in the second and third spacewalks ready.

On flight day 6, the members of Endeavour's crew performed a focused inspection of an area of thermal protection tiles on the bottom of the orbiter. The tiles were damaged during launch, and detailed data provided by the Orbiter Boom Sensor System (OBSS) was needed to make sure the orbiter could re-enter Earth's atmosphere safely. The focused inspection started with the Canadarm2 grappling the OBSS in the middle of the boom and handing it off to the shuttle's Canadarm, which was controlled by pilot Gregory Johnson and mission specialists Michael Fincke and Roberto Vittori. The inspection process took approximately two hours to complete, and resulted in the Thermal Protection System (TPS) being cleared for entry.

The second EVA was performed by Andrew Feustel and Michael Fincke on May 22, 2011 (8h 07m). The astronauts refilled radiators with ammonia. They also completed venting the early ammonia system, lubricated a left-side solar joint and parts of Dextre, a two-armed space station robot capable of handling delicate assembly tasks currently performed by spacewalkers.
Andrew Feustel and Michael Fincke worked on two major projects during the second spacewalk of the mission: refilling one of the station's cooling loops with ammonia, and lubricating one of the station's massive Solar Alpha Rotary Joints (SARJs).
The works of the first spacewalk mean that Andrew Feustel and Michael Fincke had only a small amount of preparation left for the ammonia refill task. They first finished rerouting the cables, so that there was a continuous open line from the P1 segment of the station's truss where the extra ammonia is stored in ammonia tank assemblies, to the P6 section where the leaky loop was. The flight controllers on the ground in Houston performed a leak check of the line the refill began. It took about 10 minutes, during which about 5 pounds of ammonia was added to the cooling loop.
Once the refill was complete, Andrew Feustel vent the remaining ammonia from the jumper cables the spacewalkers installed, and then removed the cables. This was done in two parts - the first vent the ammonia between P1 and P5 and lasted about 17 minutes. Afterward, Andrew Feustel vents the jumper cable on P6, which only took about four minutes.
Meanwhile, Michael Fincke moved to the SARJ on the P3 segment of the station's truss. In 2007, its starboard-side counterpart was found to be grinding against itself, and so lubrication was added to both joints during the spacewalks of the STS-126 mission. The lubrication has been working very well, and Michael Fincke and Andrew Feustel were replenishing on the port side as part of the second spacewalk of the mission.
The rotary joint has 22 protective insulation covers. Michael Fincke started off the work by opening covers 12, 13, 16, 17, 8 and 9. He inspected the area under one of the covers, taking photos and wiping the surface of the joint to collect samples of the remaining grease from the previous lubrication. Then, Michael Fincke used one grease gun with to add grease to the inner canted surface and another gun for the outer canted and datum A surfaces.
When Michael Fincke was finished with lubricating beneath the first set of covers, he rejoined Andrew Feustel to finish up putting the port cooling loops back into their original configuration. Once complete, flight controllers on the ground in Houston rotated the port SARJ 200 degrees to spread the grease.
That rotation took about an hour, giving Michael Fincke time to install two radiator grapple bar stowage beams on the S1 segment of the station's truss. The beams are used to store handles that would be necessary if a radiator ever needed to be replaced. Meanwhile, Andrew Feustel got into place for his work with the Special Purpose Dexterous Manipulator, or Dextre. The station's robotic arm brought Dextre to Andrew Feustel, so that Andrew Feustel could install a cover on one of the robot's cameras and lubricate the snares that allow the robot to grab onto equipment.
By the time those tasks were finished, the port SARJ were in place for its second round of lubrication. Andrew Feustel and Michael Fincke worked together on the task this time, and when they were done, they reinstalled the covers on the joint before making their way back to the Quest airlock.

After the STS-134 crew went to bed, the Expedition 27 crew prepared for their departure. Expedition 27 commander Dmitri Kondratiyev and Flight Engineers Paolo Nespoli and Catherine Coleman left the ISS aboard the Soyuz TMA-20 spacecraft at 21:45 UTC. The departure of the three Expedition 27 crew members marked the start of Expedition 28, leaving the new expedition commander Andrei Borisenko and Flight Engineers Aleksandr Samokutyayev and Ronald Garan aboard the station. Before re-entry, Soyuz TMA-20 performed a special fly-about of the ISS, taking numerous photographs of the station and Space Shuttle Endeavour. Soyuz TMA-20 and the Expedition 27 crew landed safely in central Kazakhstan at 02:26 UTC on May 24, 2011.

The third EVA was again performed by Andrew Feustel and Michael Fincke on May 25, 2011 (6h 54m) to install a grapple, or handle for the robotic arm on the station to grab, on the Zarya module to support robotic operations based from the Russian segment. They also installed additional cables to provide backup power to the Russian portion of the space station.
The work of the third spacewalk centered around increasing redundancy in the power supply to the Russian side of the station and extending the reach of the station's robotic arm to that area. The latter was achieved by adding a power and data grapple fixture to the exterior of the Zarya module. That allows the arm to "walk" to Russian segment, using that grapple fixture as a base.
The spacewalk started with Andrew Feustel and Michael Fincke doing some setup work at the Zarya module, moving tools and equipment into place and removing caps covering the installation location. They then returned to the Quest airlock and brought out the grapple fixture and the interface equipment that it attached to, which is called the PAMA. The size of the hardware required both spacewalkers to carry it together.
Once they arrived back at Zarya, they installed the PAMA, which the grapple fixture was already be attached to. This required twisting its three "feet" into place on the exterior of Zarya.
With the fixture installed, Andrew Feustel and Michael Fincke moved on to setup work. They started by installing a video signal converter nearby. Michael Fincke secured it using one bolt, while Andrew Feustel connected three cables between the converter and the grapple fixture. Michael Fincke then connected one final cable and installed insulation on the converter.
There then were a number of cables to connect the grapple fixture to the rest of the station. There were two power cables to connect and two data cables to install.
The majority of the rest of the spacewalk was devoted to installing jumper cables that will add an extra level of redundancy to the system that provides the Russian side of the space station with power. These cables ran from the Harmony node, to the Unity node, to the Zarya module.

On flight day 11, the crew of Space Shuttle Endeavour conducted a late inspection of the orbiter's Thermal Protection System. On most previous flights, this inspection was performed after the shuttle undocked from the ISS. However, in this case it was done early, because the Orbiter Boom Sensor System (OBSS) was to be left on board the ISS after Endeavour's departure.

The fourth and final EVA by Michael Fincke and Gregory Chamitoff occurred on May 27, 2011 (7h 24m). Michael Fincke and Gregory Chamitoff stowed the shuttle's 50-foot (15 meters) boom on the right-side truss on a permanent stowage fixture, retrieved the grapple from the station's left-side truss and used it as a replacement for the grapple currently on the boom. They then released restraints from one of the arms on Dextre and replaced thermal insulation on one of the spare gas tanks for the Quest airlock.
The bulk of the work on the final spacewalk of the STS-134 mission focused on getting the shuttle's OBSS stored on the space station's truss system and ready for use by the station's robotic arm. The arm has proven useful in the past for providing additional reach on spacewalk tasks and could come in handy in other areas, as well, so rather than send it home on the space shuttle, it will stay behind when Endeavour leaves.
The spacewalk started with the station's robotic arm taking the boom off the hands of the shuttle robotic arm. While Michael Fincke and Gregory Chamitoff made their way out of the Quest airlock, Gregory Johnson and Catherine Coleman then maneuvered the boom into position for them on the starboard side of the station's truss, where stanchions held it in place. Michael Fincke and Gregory Chamitoff simply locked the boom into place. Afterward, Michael Fincke connected two grounding connectors, while Gregory Chamitoff installed a foot restraint on the station's robotic arm for use later in the spacewalk.
From there, both spacewalkers moved to the P6 segment of the station's truss to retrieve a power and data grapple fixture for installation on the boom. Currently, a grapple fixture in the middle of the boom is the only one that the station arm is able to use, which halves the reach of the boom when on the station's arm. To remedy this, Michael Fincke and Gregory Chamitoff replaced an electrical flight grapple fixture currently on one end of the boom with a power and data grapple fixture that the station arm can use.
To retrieve the power and data grapple fixture, Michael Fincke and Gregory Chamitoff worked together to release four bolts holding it in place. Gregory Chamitoff then climbed onto the station's robotic arm for a ride back to boom on the starboard side of the station's truss. There, Gregory Chamitoff, with assistance from Michael Fincke, released the six bolts holding the electrical flight grapple fixture to the boom and cut its cable. Then he installed an adapter assembly on the boom, using six bolts and slided the power and data grapple fixture into place on it. Four bolts held it in place.
Afterward, Gregory Chamitoff climbed off of the robotic arm, while Michael Fincke stowed the electrical flight grapple fixture in Endeavour's cargo bay, and the two moved onto their work on a spare arm for Dextre.
The arm was delivered on ExPRESS Logistics Carrier 3, where three expandable diameter fixture bolts had held it in place for launch. Michael Fincke and Gregory Chamitoff released each of the bolts, making use of a specially designed pry rod.
The final spacewalking task of the mission was performed by Gregory Chamitoff. He installed insulation on the grapple fixture of the high-pressure gas tank delivered by Endeavour on ExPRESS Logistics Carrier 3.

Flight day 13 saw the members of the STS-134 crew complete several major tasks. Mission specialists Michael Fincke and Gregory Chamitoff replaced an absorbent bed in the Carbon Dioxide Removal Assembly (CDRA). The beds have to be changed from time to time in order for the CDRA to remove CO2. While the CDRA work was on-going, commander Mark Kelly and mission specialist Andrew Feustel re-sized two of the spacesuits that will be used by Expedition 28 Flight Engineers Ronald Garan and Michael Fossum. The rest of the STS-134 crew completed more transfers between space shuttle Endeavour and the International Space Station (ISS).

The transfer of supplies and equipment was completed on flight day 14, with the transfer of 4 bags of water from the shuttle to the ISS. Mission specialist Michael Fincke completed the work on the Carbon Dioxide Removal Assembly (CDRA) that he and Gregory Chamitoff had started the day before. Gregory Chamitoff was joined by Andrew Feustel to finish stowing tools that had been used during the mission's four spacewalks. Space shuttle Endeavour's small vernier thrusters were used to raise the ISS by about 3,150 feet (960 m). The later part of the crew day saw the Expedition 28 crew hold a farewell ceremony for the STS-134 crew. After the two crews said their farewells to one another, they got into procedures to close the hatches on the ISS and space shuttle. After the hatches were closed and secured, a series of leak checks were performed on both vehicles, and the Pressurized Mating Adapter 2 (PMA 2) was depressurized. The hatch closures marked the end of joint operations.

The STS-134 mission delivered the Materials on International Space Station Experiment 8 (MISSE) experiments, and returned the completed MISSE 7 experiments to Earth. MISSE 7 had been delivered to the ISS on STS-129 in 2009.

STS-134 carried a new Glacier module to the ISS and returned two old ones to Earth. The Glacier units were used to store and return science samples on the space shuttle.

Endeavour brought 13 Lego kits to the ISS, where astronauts-built Lego models to see how they would react in microgravity, as part of the Lego Bricks in Space program. The results were shared with schools as part of an educational project.

Endeavour performed four Department of Defense payloads of opportunity: MAUI, SEITI, RAMBO-2, and SIMPLEX. All four of these experiments required engine and thruster firings, and were to be completed only if there was sufficient propellant on board Endeavour.

At undocking time, the hooks and latches were opened and springs pushed the shuttle away from the station. Endeavour's steering jets were shut off to avoid any inadvertent firings during the initial separation.
Once the shuttle was about two feet (61 centimeters) from the station and the docking devices were clear of one another, Gregory Johnson turned the steering jets back on and manually control Endeavour within a tight corridor as the shuttle separated from the station.
Endeavour moved to a distance of about 450 feet (137.2 meters), where Gregory Johnson began to fly around the station. Endeavour circled the shuttle around the station at a distance of about 600 feet (183 meters). The shuttle crew took detailed photographs of the external structure of the station, which served as important documentation for the ground teams in Houston to monitor the orbiting laboratory.
Once the shuttle completed 1.5 revolutions of the complex, Gregory Johnson fired Endeavour's jets to leave the area. Nearly two hours after undocking a second firing of the engines, which would normally take the shuttle further away, served as the first maneuver to bring Endeavour back toward the station for the STORRM. The test characterized the performance of sensors in Endeavour's payload bay and acquisition of reflectors on the shuttle's docking target at the station.
The re-rendezvous mimic the Orion vehicle's planned rendezvous trajectory and approached no closer than 600 feet (183 meters) to the station. Endeavour approached the station to a point 1,000 feet (304.8 meters) below and 300 feet (91.4 meters) behind the station at its closest point at 450 feet (137.2 meters).
Nearly five hours after undocking, Endeavour's engines fired again to depart the station's vicinity. The shuttle began to increase its distance behind the station with each trip around the Earth while ground teams analyzed data from the late inspection of the shuttle's heat shield. However, the distance was close enough to allow the shuttle to return to the station in the unlikely event that the heat shield is damaged, preventing the shuttle's safe re-entry.

EVA data

  Name Start End Duration Mission Airlock Suit
EVA Feustel, Andrew 20.05.2011, 07:10 UTC 20.05.2011, 13:29 UTC 6h 19m STS-134 ISS - Quest EMU No. 3004
EVA Chamitoff, Gregory 20.05.2011, 07:10 UTC 20.05.2011, 13:29 UTC 6h 19m STS-134 ISS - Quest EMU No. 3005
EVA Fincke, Michael 22.05.2011, 06:05 UTC 22.05.2011, 14:12 UTC 8h 07m STS-134 ISS - Quest EMU No. 3018
EVA Feustel, Andrew 22.05.2011, 06:05 UTC 22.05.2011, 14:12 UTC 8h 07m STS-134 ISS - Quest EMU No. 3004
EVA Feustel, Andrew 25.05.2011, 05:43 UTC 25.05.2011, 12:37 UTC 6h 54m STS-134 ISS - Quest EMU No. 3004
EVA Fincke, Michael 25.05.2011, 05:43 UTC 25.05.2011, 12:37 UTC 6h 54m STS-134 ISS - Quest EMU No. 3018
EVA Chamitoff, Gregory 27.05.2011, 04:15 UTC 27.05.2011, 11:39 UTC 7h 24m STS-134 ISS - Quest EMU No. 3005
EVA Fincke, Michael 27.05.2011, 04:15 UTC 27.05.2011, 11:39 UTC 7h 24m STS-134 ISS - Quest EMU No. 3018

Photos / Graphics

Space Shuttle ISS after STS-134
AMS-02 crew in training

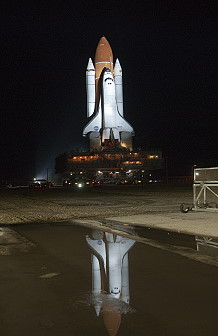

STS-134 rollout STS-134 launch
STS-134 launch STS-134 in orbit

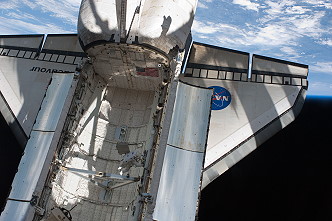

AMS relocation EVA Feustel
EVA Fincke EVA Chamitoff
life onboard life onboard

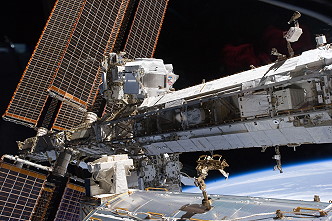

traditional in-flight photo STS-134 ISS

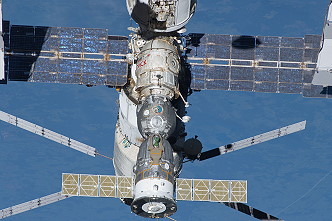

ISS ISS after STS-134
ISS STS-134 landing
STS-134 landing post landing activities

more EVA photos
